1. Introduction
In industries where reliability and performance matter most, Monel K500 Pipe Fittings stand out as a trusted choice. Manufactured from a high-strength nickel-copper alloy, these fittings are engineered to perform in the toughest conditions — from deep-sea environments to chemical processing plants. The alloy’s outstanding combination of corrosion resistance, mechanical strength, and durability makes it ideal for connecting and controlling fluid systems exposed to extreme temperatures and corrosive media.
Whether in marine engineering, oil and gas pipelines, or chemical industries, Monel K500 pipe fittings deliver long-term service with minimal maintenance. This article explores the key features, properties, and applications of these fittings, helping you understand why Monel K500 is one of the most reliable materials for demanding industrial operations.
2. What is Monel K500?
Monel K500 is a precipitation-hardened (age-hardened) nickel-copper alloy that combines the excellent corrosion resistance of Monel 400 with added strength and hardness. It contains approximately 63% nickel, 30% copper, and small amounts of aluminum and titanium, which form fine precipitates during heat treatment to enhance mechanical strength.
Key properties of Monel K500 include:
- Tensile Strength: Up to 965 MPa
- Melting Point: Around 1350°C
- Density: 8.44 g/cm³
- Corrosion Resistance: Outstanding in seawater, hydrofluoric acid, and alkalis
- Non-Magnetic: In the annealed condition
Because of these superior characteristics, Monel K500 is widely used for fittings, fasteners, shafts, and valves that must withstand high-stress and corrosive environments.
3. Manufacturing Standards & Grades
Monel K500 pipe fittings are manufactured according to strict international standards to ensure consistent quality and performance. Common specifications include:
- ASTM B366 / ASME SB366: Standard for nickel alloy butt-weld fittings
- Grades: Monel K500 (UNS N05500)
- Forms: Butt weld, socket weld, forged, and compression fittings
Manufacturing typically involves forging, machining, heat treatment, and non-destructive testing to ensure that each fitting meets exacting dimensional and performance standards.

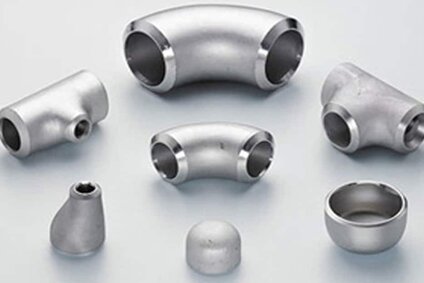

4. Types of Monel K500 Pipe Fittings
Monel K500 fittings are available in a wide range of configurations to suit diverse piping requirements:
- Elbows: Used to change the flow direction of fluids.
- Tees: Enable branch connections within a pipeline.
- Reducers: Connect pipes of different diameters.
- Couplings & Unions: Join pipes securely.
- Caps & Plugs: Seal the ends of pipelines.
- Crosses & Stub Ends: Facilitate complex piping layouts.
They are produced in various forms such as butt weld, socket weld, threaded, and forged fittings, offering flexibility for different pressure ratings and installation types.
Each fitting undergoes precision machining and testing to maintain uniform wall thickness and leak-free performance — a crucial requirement for offshore and chemical plant operations.
5. Features and Benefits of Monel K500 Fittings
Monel K500 pipe fittings offer a unique blend of features that make them indispensable in critical industries:
- Exceptional Corrosion Resistance: Excellent resistance to seawater, salt spray, acids, and alkalis.
- High Strength & Hardness: Twice the tensile strength of Monel 400, making it ideal for high-pressure applications.
- Non-Magnetic Properties: Suitable for applications where magnetic interference is undesirable.
- Spark Resistance: Safe for explosive or flammable environments.
- Erosion and Fatigue Resistance: Performs reliably under cyclical loads and fluid turbulence.
- Extended Service Life: Reduces downtime and maintenance costs.
These benefits make Monel K500 fittings a top choice for environments that combine corrosive chemicals with mechanical stress.
6. Applications of Monel K500 Pipe Fittings
Because of their robust performance, Monel K500 fittings are used across a variety of industries:
- Marine Engineering: In propeller shafts, pump shafts, and seawater piping systems due to excellent seawater resistance.
- Oil & Gas Industry: In offshore platforms, sour gas service, and process piping exposed to hydrogen sulfide.
- Chemical Processing: For handling hydrofluoric acid, caustic solutions, and organic compounds.
- Aerospace Industry: In fasteners, springs, and high-stress aircraft components.
- Power Generation: For steam lines and condenser systems in power plants.
- Pulp & Paper Industry: Resistant to organic acids and process fluids.
The ability to maintain mechanical integrity under high temperature and pressure makes Monel K500 a reliable choice in systems where safety and longevity are critical.
7. Comparison: Monel 400 vs Monel K500
| Property | Monel 400 | Monel K500 |
|---|---|---|
| Strength | Moderate | Very High (age-hardened) |
| Corrosion Resistance | Excellent | Excellent (plus erosion resistance) |
| Magnetic Properties | Slightly Magnetic | Non-Magnetic |
| Hardness | Lower | Higher due to precipitation hardening |
| Cost | Lower | Higher, but longer service life |
Monel K500 retains all the corrosion resistance of Monel 400 but offers significantly higher mechanical strength and toughness. This makes K500 preferable for high-stress environments like marine shafts and pressurized fittings, while Monel 400 is more suitable for moderate-duty corrosion-resistant applications.
8. Quality Standards and Testing
Each Monel K500 fitting undergoes rigorous testing to meet international quality requirements:
- Hydrostatic & Pneumatic Tests: Ensure leak-proof performance.
- Positive Material Identification (PMI): Confirms alloy composition.
- Ultrasonic & Radiographic Testing: Detect internal flaws.
- Hardness & Impact Testing: Validate mechanical strength.
Manufacturers typically hold ISO 9001, PED, and IBR certifications, ensuring adherence to global quality and safety standards.
9. Why Choose Mcneil Instruments Inc for Monel K500 Fittings
At Mcneil Instruments Inc, we specialize in the design, manufacturing, and supply of premium Monel K500 pipe fittings. With years of metallurgical expertise and state-of-the-art production facilities, we ensure every product meets or exceeds ASTM, ASME, and international standards.
Our Advantages:
- In-house forging and heat treatment facilities.
- Customized fittings available in all sizes and pressure classes.
- Competitive pricing and worldwide delivery.
- 100% traceability and test certifications with each order.
When you choose us, you get not only superior products but also the technical support and reliability trusted by global clients across marine, oil & gas, and chemical sectors.
10. Maintenance & Handling Tips
To ensure long-term reliability of Monel K500 fittings, proper handling and maintenance are essential:
- Store in clean, dry areas away from contaminants.
- Avoid contact with carbon steel tools or surfaces to prevent galvanic corrosion.
- Clean with mild alkaline solutions after exposure to corrosive media.
- Inspect periodically for surface wear or stress corrosion, especially in marine applications.
With these precautions, the service life of Monel K500 fittings can be significantly extended, even under harsh operating conditions.
To learn more about our commitment to quality and industry expertise, visit our About Us page. For inquiries, quotations, or project support, please reach out through our Contact Us page — our team will be glad to assist you.
11. Conclusion
Monel K500 Pipe Fittings combine strength, corrosion resistance, and reliability — making them the preferred choice for industries operating in aggressive environments. From offshore rigs to chemical processing plants, these fittings deliver unmatched performance where standard materials fail.
If you’re seeking high-quality, precision-engineered Monel K500 fittings, choose a trusted manufacturer that prioritizes quality, certification, and customer satisfaction.
Contact Mcneil Instruments Inc today for durable and corrosion-resistant Monel K500 pipe fittings that meet global standards and exceed expectations.
Frequently Asked Questions (FAQs)
1. What are Monel K500 Pipe Fittings used for?
Monel K500 Pipe Fittings are used in industries that demand strength and corrosion resistance, such as marine engineering, oil & gas, and chemical processing. They connect and seal piping systems that transport corrosive or high-pressure fluids.
2. What is the main difference between Monel 400 and Monel K500?
Monel K500 contains aluminum and titanium, which allow it to be precipitation hardened for greater strength and hardness. Monel 400 offers similar corrosion resistance but lower mechanical strength.
3. Is Monel K500 suitable for seawater applications?
Yes. Monel K500 resists seawater, salt spray, and marine bio-fouling, making it an excellent choice for offshore platforms, shipbuilding, and desalination plants.
4. What standards apply to Monel K500 fittings?
Most Monel K500 fittings comply with ASTM B366 / ASME SB366 specifications. Manufacturers may also certify products to ISO 9001, PED, or IBR quality standards.
5. Can Monel K500 handle high-temperature or high-pressure service?
Absolutely. The alloy retains its mechanical strength and fatigue resistance up to about 600 °C (1110 °F), performing reliably in high-pressure and high-temperature piping systems.
