Introduction
Hastelloy C276 pipe fittings are among the most reliable solutions for handling highly corrosive and aggressive environments. Known for their exceptional resistance to oxidizing and reducing agents, these fittings are widely used across industries that demand superior strength and durability.
As a leading manufacturer, supplier, and exporter of Hastelloy C276 pipe fittings, we specialize in producing fittings that meet international standards for chemical, marine, power, and pharmaceutical industries. Our fittings are engineered with precision to ensure long service life, excellent performance, and corrosion resistance even under extreme conditions.
This article explores the properties, manufacturing process, types, benefits, applications, and standards of Hastelloy C276 pipe fittings, providing valuable insights for engineers, buyers, and industry professionals.
What is Hastelloy C276?
Hastelloy C276 is a nickel-molybdenum-chromium alloy with a small addition of tungsten, designed for outstanding corrosion resistance in a wide range of severe chemical environments. It exhibits exceptional resistance to strong oxidizers, ferric and cupric chlorides, hot contaminated media, and seawater.
This alloy is known for its:
- Resistance to pitting, stress corrosion cracking, and crevice corrosion.
- Excellent mechanical strength at high temperatures.
- Versatility in both oxidizing and reducing conditions.
The typical chemical composition includes Nickel (Ni), Molybdenum (Mo), Chromium (Cr), Iron (Fe), and Tungsten (W). The alloy conforms to ASTM B366 WPHC276 and UNS N10276 standards, making it a preferred choice for industries that deal with harsh chemicals and acids.
Manufacturing Process of Hastelloy C276 Pipe Fittings
As a trusted Hastelloy C276 fittings manufacturer, we follow a comprehensive production process to ensure quality, durability, and compliance with international standards.
1. Material Selection
Only premium-grade raw materials sourced from approved mills are used. Each batch undergoes chemical and mechanical testing to verify conformity with ASTM B366 specifications.
2. Forming and Forging
The alloy is shaped using hot and cold forming techniques depending on the fitting type. Forging improves the grain structure and mechanical properties of the material.
3. Heat Treatment
Hastelloy C276 fittings undergo solution annealing to remove internal stresses and restore ductility. Controlled cooling ensures structural stability and corrosion resistance.
4. Machining and Finishing
CNC machining is used to achieve dimensional accuracy. The fittings are then pickled and polished to obtain a smooth surface finish, ensuring easy installation and long service life.
5. Quality Testing
All fittings are subjected to Non-Destructive Testing (NDT) such as radiography, ultrasonic testing, and dye penetrant testing. Positive Material Identification (PMI) and Hydrostatic tests are conducted to ensure reliability and safety.

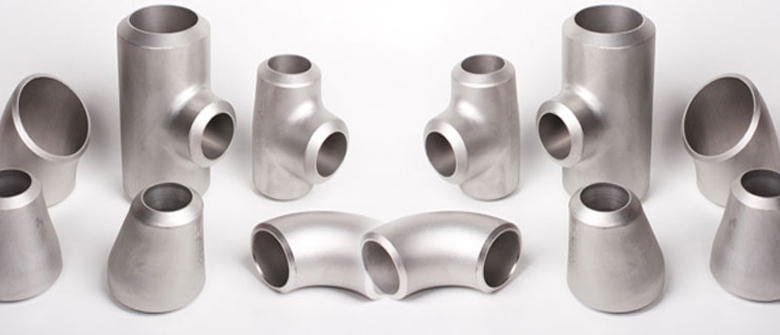

Types of Hastelloy C276 Pipe Fittings
Hastelloy C276 pipe fittings are available in various configurations and dimensions to suit different piping systems. Below are the most common types:
- Elbow (45°, 90°, 180°): Used to change the direction of the flow.
- Tee and Cross: Designed to branch or combine flow from different directions.
- Reducer (Concentric and Eccentric): Helps in connecting pipes of different diameters.
- End Cap: Seals off the end of a piping line.
- Stub End: Used with lap joint flanges for easy assembly and disassembly.
- Long Radius and Short Radius Fittings: Selected based on space constraints and flow conditions.
Each type complies with standards such as ASME B16.9, B16.28, and MSS SP-43, ensuring interchangeability and compatibility in global applications.
(Image Alt Text Suggestions: “Hastelloy C276 Elbow Fitting”, “Alloy C276 Buttweld Tee”, “Hastelloy C276 Reducer and Cap”)
Key Features and Benefits
Hastelloy C276 pipe fittings offer multiple performance advantages that make them ideal for critical applications:
- Exceptional Corrosion Resistance: Withstands oxidizing and reducing media, including strong acids like hydrochloric and sulfuric acid.
- High Strength and Toughness: Maintains structural integrity even at elevated temperatures.
- Excellent Weldability: Suitable for all standard welding techniques without the need for preheating or post-weld heat treatment.
- Durability: Long-lasting performance under continuous exposure to aggressive fluids.
- Low Maintenance: Reduces downtime and maintenance costs in process industries.
These properties ensure that Hastelloy C276 fittings perform reliably even in extreme industrial environments.
Applications and Industries Served
Due to their outstanding corrosion resistance, Hastelloy C276 fittings are widely used in industries such as:
- Chemical Processing: Ideal for reactors, heat exchangers, and piping systems handling acidic or chloride-rich solutions.
- Marine and Offshore Engineering: Excellent resistance to seawater and brine environments.
- Power Generation: Used in flue gas scrubbers and heat recovery systems.
- Pharmaceutical and Food Processing: Ensures contamination-free fluid transfer.
- Pollution Control Equipment: Used in scrubbers, stack liners, and ducting systems.
Their ability to withstand both oxidizing and reducing conditions makes them indispensable in environments where stainless steels or lesser alloys fail.
Standards, Grades, and Specifications
Our Hastelloy C276 pipe fittings comply with the following international standards and specifications:
| Standard | Description |
|---|---|
| ASTM B366 WPHC276 | Specification for wrought nickel alloy fittings |
| ASME B16.9 / B16.28 | Dimensions and tolerances for buttweld fittings |
| UNS N10276 | Alloy designation for Hastelloy C276 |
| MSS SP-43 / SP-75 | Fabricated and wrought fittings standards |
Available forms include seamless, welded, and fabricated fittings with sizes ranging from ½” to 24” (or as per custom requirements).
Quality Assurance and Certifications
As an ISO 9001:2015 certified manufacturer, we ensure that every fitting meets rigorous quality benchmarks.
Quality Procedures Include:
- Raw material inspection and traceability
- Dimensional and visual testing
- Hydrostatic and pressure testing
- Third-party inspection (TPI) on request
We provide each product with a Mill Test Certificate (EN 10204 3.1/3.2) to ensure transparency and compliance. We pack the fittings in seaworthy wooden cases to prevent damage during transit.
Why Choose Us – Reliable Manufacturer & Exporter
As a globally recognized Hastelloy C276 fittings exporter and supplier, we pride ourselves on delivering products that combine performance, durability, and affordability.
Our Key Strengths:
- State-of-the-art manufacturing facility with advanced machinery.
- Experienced technical team ensuring precision and quality.
- Global supply network covering Asia, Europe, the Middle East, and the Americas.
- Competitive pricing and flexible delivery schedules.
- Custom solutions based on drawings or project specifications.
We provide top-quality nickel alloy pipe fittings that meet international standards and exceed customer expectations.
To learn more about our commitment to quality and industry expertise, visit our About Us page. For inquiries, quotations, or project support, please reach out through our Contact Us page — our team will be glad to assist you.
Conclusion
Hastelloy C276 pipe fittings are an essential component for industries operating under corrosive and high-temperature conditions. Their superior resistance to chemical attack, combined with excellent mechanical properties, makes them one of the most reliable solutions in the market.
As a leading manufacturer, supplier, and exporter of Hastelloy C276 pipe fittings, we deliver products that stand the test of time — ensuring safe, efficient, and cost-effective operation in critical industrial systems.
Contact us today to request a quote or technical datasheet for Hastelloy C276 fittings tailored to your project needs.
Frequently Asked Questions (FAQs)
1. What are Hastelloy C276 pipe fittings used for?
Industries such as chemical processing, marine engineering, pollution control, power generation, and pharmaceuticals use Hastelloy C276 pipe fittings for their excellent corrosion resistance. They are ideal for transferring aggressive chemicals, acids, and seawater in harsh environments.
2. What is the composition of Hastelloy C276?
Hastelloy C276 is a nickel-molybdenum-chromium alloy with small additions of iron and tungsten. This composition provides outstanding resistance to oxidizing and reducing agents, making it suitable for highly corrosive conditions.
3. What standards do Hastelloy C276 fittings follow?
Common standards include:
- ASTM B366 WPHC276 – for wrought nickel alloy fittings
- ASME B16.9 / B16.28 – for dimensions and tolerances
- MSS SP-43 / SP-75 – for fabrication and testing
These standards ensure quality, compatibility, and international acceptance.
4. What are the main types of Hastelloy C276 pipe fittings?
The most common types include:
- Elbows (45°, 90°, 180°)
- Tees and Crosses
- Reducers (Concentric & Eccentric)
- Caps and Stub Ends
Each type serves a unique function in redirecting, branching, or sealing the flow in a piping system.
5. Why choose Hastelloy C276 fittings over stainless steel?
Unlike stainless steel, Hastelloy C276 offers superior resistance to strong oxidizers, chlorides, and reducing chemicals. It also performs better in high-temperature and acidic environments, ensuring longer service life and reduced maintenance costs.
